LEVERING TOGGLE CLAMP VARIABLE

Levering Toggle Clamps work with a knee-levering principle and are equipped with a self-locking systm in order to prevent unintended opening of the toggle clamp.



The Variable Levering Toggle Clamp adapts automatically to the Workpiece. A stepless variable span ensures a constant clamping force. Therfore a time consumig manual setting of the pressure screw is not neccessary.

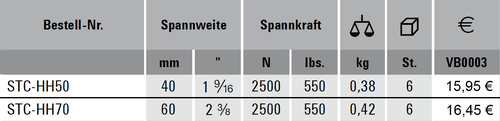

Variable Levering Toggle Clamp (Horizontal) with Open Arm and Horizontal Base Plate

STC-HH

Variable Kniehebelspanner ( Waagrechtspanner) mit offenem Arm und waagerechter Grundplatte
  • zzgl. 19% MwSt. additional 19% VAT

Variable Kniehebelspanner ( Waagrechtspanner) mit offenem Arm und waagerechter Grundplatte

Variable Kniehebelspanner ( Waagrechtspanner) mit offenem Arm und waagerechter Grundplatte



  • Lever of toggle clamp is horizontal in span setting
  • Automatic stepless adjustment of span-hight (upto 40mm/ 1 O“) fairly constant spann-force- without manual changes of the pressure screw position
  • Adjustable spann force upto 2.500 N (550 lbs.) regarding the stetting of the adjustment screw on the joint
  • Stable, hardened and tempered steel sheets for long service life
  • Open hole design of the ground plate consistent with Inch and mm
  • High quality 2-component synthetics grip

*NEU* *NEW*

Variable Stright Line Push-Pull Type Toggle Clamps  with Horizontal Ground Base STC-IHH

Variable Schubstangenspanner mit waagerechter Grundplatte
  • zzgl. 19% MwSt. additional 19% VAT

Variable Schubstangenspanner mit waagerechter Grundplatte

Variable Schubstangenspanner mit waagerechter Grundplatte



  • Movement of the lever is transformed into an axial movement of the push-pull clamp
  • Automatic stepless adaptation of the adjustment track (upto 16mm/ P“) fairly constant spann force- without manual adjusment of the pressure screw position
  • Adjustable spann force upto 2.500 N (550 lbs.) regarding the setting of the adjustment screw on the joint
  • Stable, hardened and tempered steel sheets for long service life
  • Open hole design on the ground plate suitable for Inch and mm
  • High quality 2-component synthetics grip
