STRAIGHT LINE PUSH-PULL TYPE TOGGLE CLAMP with Side Ward
Straight Line Push-Pull Type- Fields of Application:
Straight Line Push-Pull Type Toggle Clamps are mounted horizontally with a side ward. The cast body can be rotated (360°) and therefore individually positioned and fixed.
Stright Line Push-Pull Type Toggle Clamp- Product Features:
- Oil-resistent, ergonomic hold
- Burnished high-quality steel
- Lubricated joints and depositories
- Rivets of stainless steel
- Clamping scew with oil and heat-resistent rubber cap

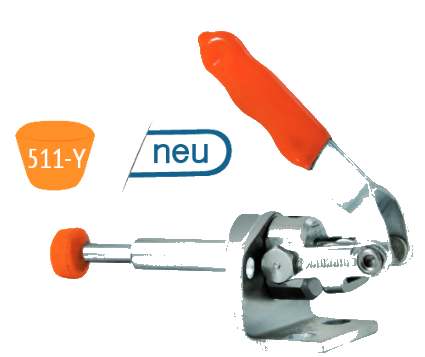

Straight Line Push-Pull type Toggle Clamp with Horizontal Mounting Base


MODELLNR./ model no |
SCHWARZ/ black |
F1 [N] |
F3
[N] |
Fi |
FEDER HUBWEG (SPRING STROKE) |
HUB 1/ stroke |
GEWICHT/ weight [g] |
PREIS (€) /Stk. (verzinkt) |
---|---|---|---|---|---|---|---|---|
ANDRÜCKKRAFT/ yield (F1:Fi) |
||||||||
511–1-Y | B511-1 | 800 |
970 |
24:1 | 10 | 22 | 125 | 17,40 |
511–2-Y | B511-2 | 1500 |
1700 |
26:1 | 12 | 27 | 260 | 20,70 |
511–3-Y | B511-3 | 2500 |
2640 |
27:1 | 14 | 38 | 475 | 24,70 |
511–5-Y | B511-5 | 3500 |
3700 |
38:1 | 16 | 53 | 945 | 34,80 |
511–6-Y | B511-6 | 4500 |
4650 |
38:1 | 16 | 53 | 1050 | 43,40 |

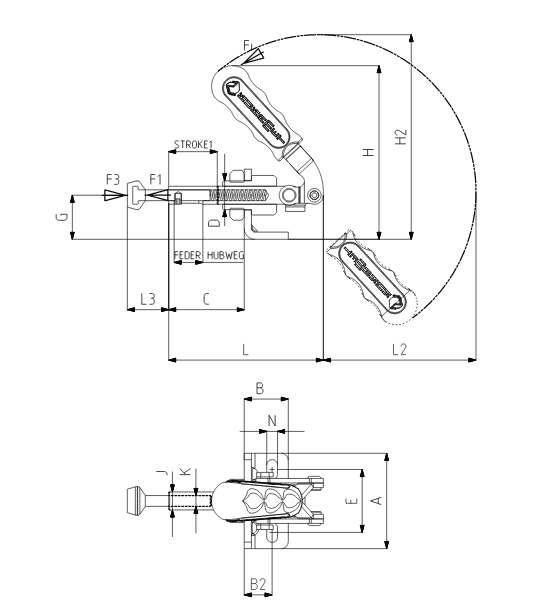

MODELLNR./ model no |
A | B |
B2 |
C | D | E | G | H |
H2 |
J | K | L | L2 |
L3 min. |
L3 max. |
N |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
511–1-Y | 45 | 20 |
11,5 |
34 | M12 x 1,5 | 22,5-32,5 | 19,5 | 72,5 |
85 |
8 | 5 | 69 | 60 |
11,5 |
21,5 | 5,5x10,5 |
511–2-Y | 53 | 24,5 |
15,5 |
42 | M16 x 1,5 | 30-40 | 24,5 | 96 |
111 |
10 | 6 | 86 | 80 |
11 |
23 | 6x11 |
511–3-Y | 60 | 30 |
17,5 |
56 | M20 x 1,5 | 33,5-42,5 | 30,5 | 137 |
120 |
12 | 8 | 116 | 80 |
13 |
27 | 6,5x11 |
511–5-Y | 78 | 36 |
21 |
75 | M24 x 1,5 | 42-57 | 38 | 152 |
179 |
14 | 10 | 155 | 135 |
17 |
33 | 8,5x16 |
511–6-Y | 78 | 36 |
21 |
75 | M24 x 1,5 | 42-57 | 38 | 152 |
179 |
16 | 10 | 155 | 135 |
17 |
33 | 8,5x16 |
- All Toggle Clamps are shipped fully equipped with dolly
- Material: galvanised steel, high-quality stinless steel- ergonomic oil-resistent hold
- Straight Line Push-Pull Type Toggle Clmaps are also available in stainless design with safety interlock
Dimensions and technical data are subject to change without notice
