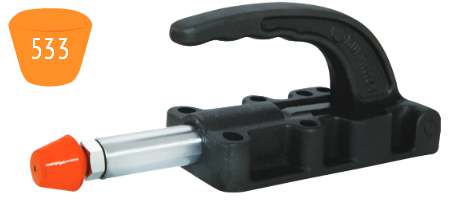

STRAIGHT LINE PUSH-PULL TYPE TOGGLE CLAMPS with Cast Body
Schubstangenspanner - Anwendungsbereiche :
Straight Line Push-Pull Type Toggle Clamp - Fields of Application:
The Straight Line Push-Pull Type Toggle Clamp has a cast body (best applicable for welding devices). 4-6 drillings are provided for the fixture.
Straight Line Push-Pull Type Toggle Clamp- Product Features:
- Oil-resistent, ergonomic hold
- Burnished high-quality steel
- Lubricated joints and depositories
- Rivets of stainless steel
- Clamping scew with oil and heat-resistent rubber cap
Straight Line Push-Pull Type Toggle Clamp with Cast Body:


MODELLNR./ model no |
SCHWARZ/ black |
F1 [N] |
F3 [N] |
Fi |
SPANNSCHRAUBE/ squeeze screw |
HUB/ stroke |
GEWICHT/ weight [g] |
PREIS (€) /Stk. (verzinkt) |
---|---|---|---|---|---|---|---|---|
ANDRÜCKKRAFT/ yield (F1:Fi) |
||||||||
533-4-Q14 | B533-4-Q14 | 7000 |
7000 |
16:1 | M8X50 | 35 | 610 | 66,80 |
533-5-Q20 | B533-5-Q20 | 12000 |
12000 |
30:1 | M10X70 | 50 | 2870 | 76,90 |

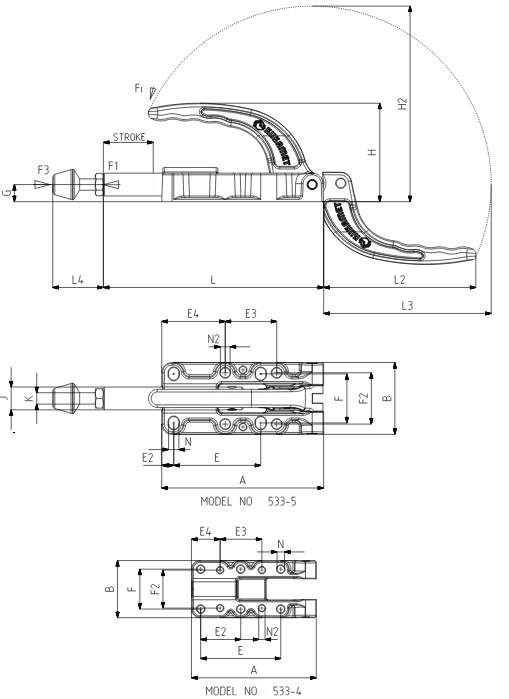

MODELLNR./ model no |
A | B | C | D | E | E2 |
E3 |
E4 | F |
F2 |
G | H | H2 |
J |
K | L | L2 | L3 |
L4
Min. |
L4
Max. |
M | N | N2 |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
533-4-Q14 | 109 | 50 | 70 |
35 |
36,5 | 25 | 35 |
33,5 |
12 | 73 | 133 |
14 |
M8 | 148 | 98 | 112 |
23 |
58 | 6,5 | 5,5 | |||
533-5-Q20 | 141,5 | 63 | 76 | 10,5 | 45 | 55,5 | 41,45 |
45 |
16 | 87 | 173 |
20 |
M10 | 192,5 | 133 | 147 |
29 |
79 | 9X11 | 8,5 |
- All Toggle Clamps are shipped fully equipped
- Material: galvanised steel, high-quality stinless steel- ergonomic oil-resistent hold
- Mounting Base made out of cast steel
Dimensions and technical data are subject to change without notice
