VERTICAL MODULAR TOGGLE CLAMP

Fields of Application of Modular Toggle Clamps:

  • For positioning
  • For fast clamping and opening during processing of comonents
  • For intallation and for welding clamping devices
  • For clamping during drilling processes, bending, welding, mounting etc.



Product Features:

  • Burnished high-quality steel
  • Lubricated joints and depositories
  • Rivets of stainless steel





KUKAMET Modular Vertical Toggle Clamp with Horizontal Mounting Base



MODELLNR./

model no

   F1

  [N]

FI
Andruckkraft

WINKEL/angle

( + 5 °)

  GEWICHT/weight [g]   PREIS (€)/Stk.
221-2             53,50
221-4 7000  5:1 120   960    70,20
221-6 11000  5:1 120   1810    85,50

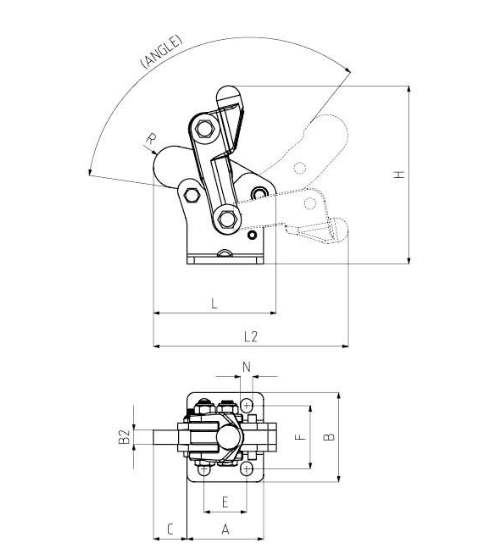

MODELLNR./ model no   A   B   B2 C D E F H L L2 N R
221-2
221-4   54   63   10 16   30 43-46 126 79 130 8,5x10 15
221-6   70   74   12 32   45 51-53 159 112 182 10,5x11,5 18



KUKAMET Modular Vertical Toggle Clamp with Mounted base

KUKAMET Vertikalspanner Modular mit fixiertem Fuß
KUKAMET Vertikalspanner Modular mit fixiertem Fuß



MODELLNR./

model no

   F1

  [N]



WINKEL/angle

( + 5 °)

  GEWICHT/weight [g]   PREIS (€)/Stk.
222-2 2500   190   220   53,50
222-4 7000   190   960    70,20
222-6 11000   190   1810    85,50





MODELLNR./ model no A A2 A3 A4 B B2 B3 B4 D D2 E F H H2 H3 M N R
222-2 30,5 16 29 14,5 18,5 6 12   M6 Ø10     28,5 34 53     9,5
222-4   52 23,5 54 28,5   36  10 20   M8 Ø17 30 15 52 50 94,5  8,5 5.7 15
222-6 69   32 70 37   46 12 22   M10 Ø22 45 20   73 61.5 120 10,5 7.7 18,5



  • All Vertical Toggle Clamps are fully delivered
  • Manufactured with steel, burnished- Stainless rivets



KUKAMET Modular Vetical Toggle Clamps with Flexible Mounting Base

KUKAMET Vertikalspanner Modular mit beweglichem Fuß
KUKAMET Vertikalspanner Modular mit beweglichem Fuß



MODELLNR./ model no F1 [N]

WINKEL/angle

( + 5 °)

  GEWICHT/weight [g]   PREIS (€)/Stk.
232-2 2500   190   200   45,40
232-4 7000   190   830    70,20
232-6 11000   190   1600    85,50



MODELLNR./model no A A2 A3 B B2 B3 D D2 H H2 H3 R
232-2 30,5 16 20 18,5 6   M6 Ø10 28,5 20 53 9,5
232-4   52   37 30   36 10   M8 Ø17   52 23 94,5 15
232-6   69 51,5 35   46 12   M10 Ø22   73 30 120 18.5

KUKAMET welding assembly of the module spanner



ASSEMBLY INSTRUCTION:



AFTER POSITIONING OF THE COMPONENT:

*FIRST, WELD PLATE NUMBER 1 ON THE BASE PLATE NUMBER 8,

*SECOND, WELD JOINT NUMBER 9 ON PLATE NUMBER 1,

ATTENTION!

*BOTH SIDES HAVE TO BE WELDED EQAULLY!

*ONE SIDE CANNOT BE WELDED MORE THAN THE OTHER

*TOO MUCH HEAT CAN CAUSE DEFORMATION OF THE COMPONENTS!

IF NEEDED:

-EXTENSION ARM NUMBER 6 CAN BE WELDED TO THE ARM OF COMPONENT NUMBER 3

-COMPONENT NUMBER 7 CAN BE WELDED TO COMPONENT NUMBER 4



  • All Vertical Toggle Clamps are fully delivered
  • Manufactured with steel, burnished- Stainless rivets

Dimensions and technical data are subject to change without notice
